Cardinal Fhn-533 | Extra-heavy Duty | Floor Scales | Controlsystemsusa
Process Control Instrumentation, Field Devices and Industrial Automation

CARDINAL   FHN-533

SKU# (648)



CARDINAL FHN-533

WEIGHT / FLOOR SCALES
EXTRA-HEAVY DUTY

$2,562.91  [3 Days]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

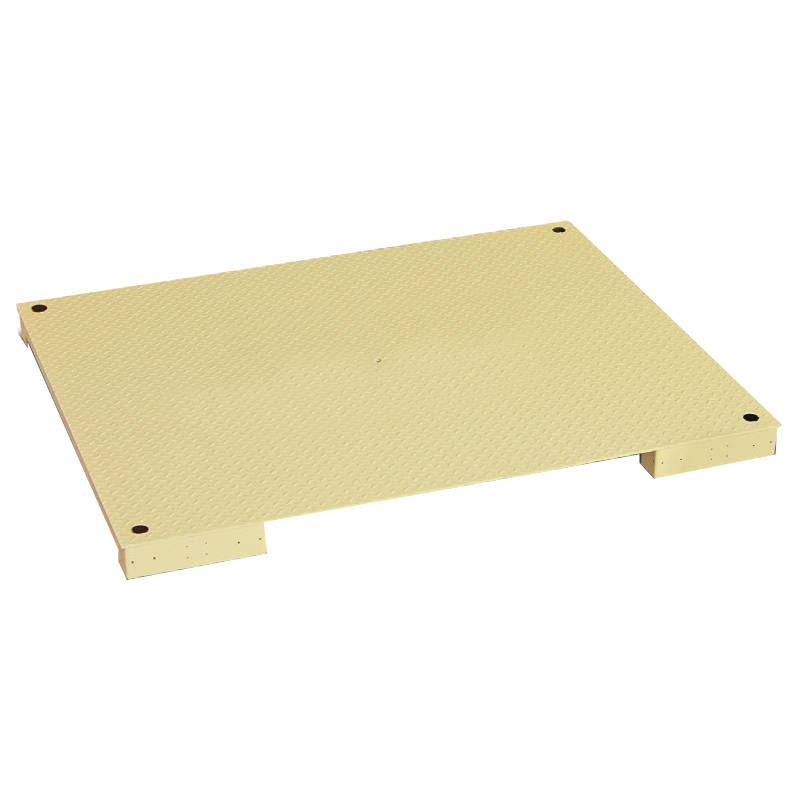

Cardinal FHN Heavy Duty Electronic Floor Scale in Mild Steel or Stainless Steel construction. Stainless Steel Hermetically-Sealed Waterproof Load Cells.

FHN-533
2,562.91

Model
Indicators
Checkered Deck Ramps
Pit Frames

[  3 Days  ]
24 Variants of base SKU
  • Pit Frames Available for All Floor Scale Types
  • Anti-Corrosion, Baked-on Polyester Powder Paint
  • Electronic and Hydraulic Floor Scale Types Available
  • Large Selection of Ramps, Weight Indicators, and Wi-Fi Options
  • All Parts are Machine Manufactured in Cardinal Scale’s Factory
EXTRA-HEAVY DUTY FLOOR SCALES Mild Steel
  • Extra Steel Reinforced Heavy-Duty Construction
  • Top Side Access to Self-Leveling and Adjustable Height Load Cells
  • Stainless Steel Hermetically-Sealed Waterproof Load Cells
  • Channel Construction Load Cell Protection from Forklifts
  • Checkered Steel Scale Deck Provides Traction
EXTRA-HEAVY DUTY FLOOR SCALES Stainless Steel
  • Corrosion-Resistant Stainless Steel Platform
  • Washdown for Easy Clean-up
  • Top Side Access to Self-Leveling and Adjustable Height Load Cells
  • Stainless Steel Hermetically-Sealed Waterproof Load Cells
  • Checkered Steel Scale Deck Provides Traction
  • Extra-Large Sizes and Capacities Available

Cardinal Scale’s legendary FloorHugger floor scales feature extra-steel reinforced construction for superior load cell protection against forklifts.

Export Info
Made inUnited States
Harmonized Tariff Code (HTC)84239010

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    5 Items found.
185
(438)

CARDINAL  185

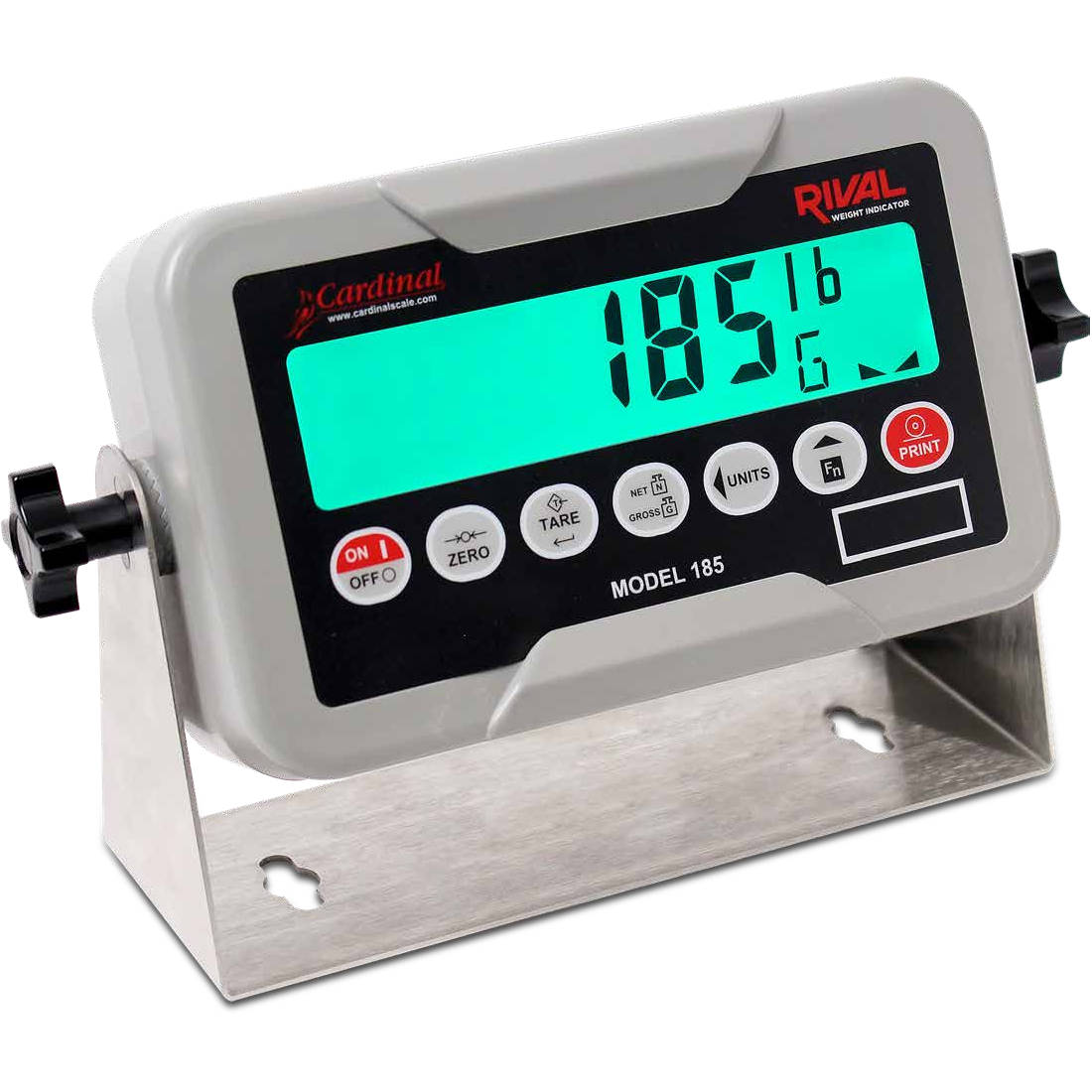

Cardinal 185 Rival Weight Indicator Remote Display. ABS Enclosure with Stainless steel mounting bracket. Bright green backlit 1-inch/25-mm high LCD Display. Lb, Oz, Kg, and Gr weighing units, Ability to drive up to 4 x350 Ohm load cells. Bi-directional RS232 port. IP66. Meets NTEP and OIML requirements. Available with rechargeable battery power. *** Replaces 180 ***

Configure

$360.80
3502-C208-0A-C205-B462
(654)

CARDINAL  3502-C208-0A-C205-B462

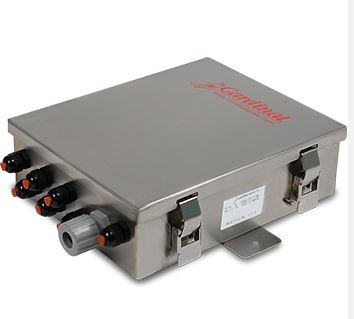

Cardinal Load Cell Summing Box, NEMA 4X Stainless Steel Junction Box for Interconnection of 2 - 4 Load Cells (350 - 500 Ohm Load Cells). Includes 3502-C205-0A Trim Board PCB with terminal blocks and 3502-B462-08 stainless steel mounting strap.



$648.81
205
(439)

CARDINAL  205

Cardinal Storm 205 Digital Weight Indicator. Local/Remote Standard. Stainless Steel Washdown Enclosure. Four Serial Ports and USB interface. LED Display. Ability to drive up to 8 x350 Ohm load cells. NTEP and OIML approved. Includes 4 serial RS-232 I/O ports configured as: 1 x 20mA output-only ports, 1 x bi-directional 20mA port, 1 x USB port. Optional Analog output, PLC interface (Remote I/O, Ethernet IP, Modbus TCP), 10/100 Mbps Ethernet TCP/IP adapter.

Configure

$656.00
201
(441)

CARDINAL  201

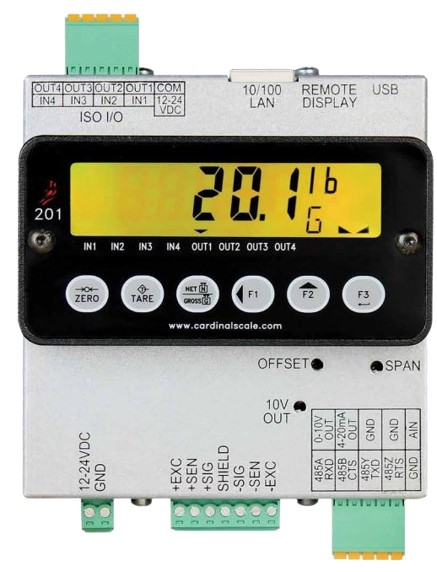

Cardinal 201 Din Rail Mount Digital Weight Indicator, Filling and Batching Controller with Web User Interface. Compact, fast and accurate. Includes serial interface RS232/ RS485, mini-USB-B, Analog (0-10V or 4-20mA), Ethernet TCP/IP, Ethernet IP, and Modbus TCP. RGB LED backlight. PLC Connectivity. Ability to drive up to 8 x350 Ohm load cells. IP-20. NTEP, UL and CE approved.

Configure

$821.62
225
(440)

CARDINAL  225

Cardinal Navigator 225 Digital Weight Indicator, Filling and Batching controller. Rugged IP66 Stainless steel enclosure. Backlit Graphics LCD Display. Querty Keyboard. USB Interface. Ability to drive up to 14 x350 Ohm load cells. Multi-Point Calibration and High-Resolution Mode. NTEP and OIML approved. Optional Analog output, PLC interface (Remote I/O, Ethernet IP, Modbus TCP), 10/100 Mbps Ethernet TCP/IP adapter.

Configure

$1,372.52
> EXTRA-HEAVY DUTY :    1 Items found.
FH-544___-II
(649)

CARDINAL  FH-544-II

Cardinal FH Full-Frame Extra-Heavy Duty Electronic Floor Scale in Mild Steel construction. Stainless Steel Potted Load Cells.

Configure

$4,183.23
