PFANNENBERG  23111800007

ALARM SIGNAL DEVICES / EXPLOSION PROOF
SOUNDER

$490.00     Availability: 4 Weeks
 Info/Quote Request
 Shipping Rates
 Volume discount



PFANNENBERG 23111800007 (1)
  • Overview
  • Benefits
  • Specs
  • Literature

Pfannenberg DS 10 3G/3D ATEX Alarm Sounder 114dB(A) for tough applications in Zones 2 & 22. 31 Tones and 4 stages. 2xM20 entries. IP66/IP67. ATEX and EAC Approvals.

Part# with Options:        23111800007
Price with Options:        490.00

Options:

Voltage
(1) Voltage for Pfannenberg DS 10 3G/3D
Version
(2) Version for Pfannenberg DS 10 3G/3D

  Availability 4 Weeks  ]

  • The industrial sounder for tough applications. Proven 100,000 times over in shipping. “When nothing else works, this still does!” “Heavy duty”but still light!
  • For use as an acoustic alarm in potentially explosive workplaces of category 3G (Zone 2) and 3D (Zone 22).
  • Category for gas and dust protection.
  • IP 67 for safe operation under extreme environmental conditions.
  • Individual selection of 32 different tones.

optionally:

  • 4-stage external tone selection (options: TAS, TAV).
  • All tones can be individually combined with one another when externally controlled (programming function, tone 32).

DS 10 3G/3D
Operating range and Nominal current consumption 195-253 V (AC 50 | 60 Hz): 0.06 A
95-127 V (AC 50 | 60 Hz): 0.12 A
19-29 V (AC 50 | 60 Hz): 0.42 A
19-29 V DC: 0.42 A
10-15 V DC: 0.42 A
Explosion protectionII 3G Ex nA II T4 (all voltages except 24 V AC)
II 3G Ex nA II T3 (24 V AC only)
II 3D Ex tD A22 IP 67 T135°C
Category (area of use)3G (Zone 2), 3D (Zone 22)
Testing bodyPfannenberg
Sound pressure level114 dB(A) ±3 dB(A)
Sound pressure level @DIN-tone112 dB(A) ±3 dB(A)
Alarm tones32 / 4 tones are externally selectable
Temperature classT4 / T3 @ –25 °C ... +55 °C
Storage temperature–40 °C ... +70 °C
Protection system (EN 60529)IP 66 | IP 67
Duty cycle100 %
Materialdie-cast aluminium GD-AI Si12 Cu
Surface coatingepoxy resin paint RAL 3000, fl ame red
Cable bushing2x M20 x 1.5 (1x plastic cable gland, 1 x plug)
Clamping range of the cable fitting6–13 mm
Connecting terminal cross-sectionmind. 0.08 mm2 ... max. 2.5 mm2 AWG 28 – 12 (AWG12 THHN, THWN)
WeightAC: 2.15 kg | DC: 1.95 kg
Export Info
Made inGermany
Harmonized Tariff Code (HTC)85182100


B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer, Check and Money Order

Checkout with Paypal

> SOUNDER :    10 Items found.
23270800000
(615)

PFANNENBERG  23270800000

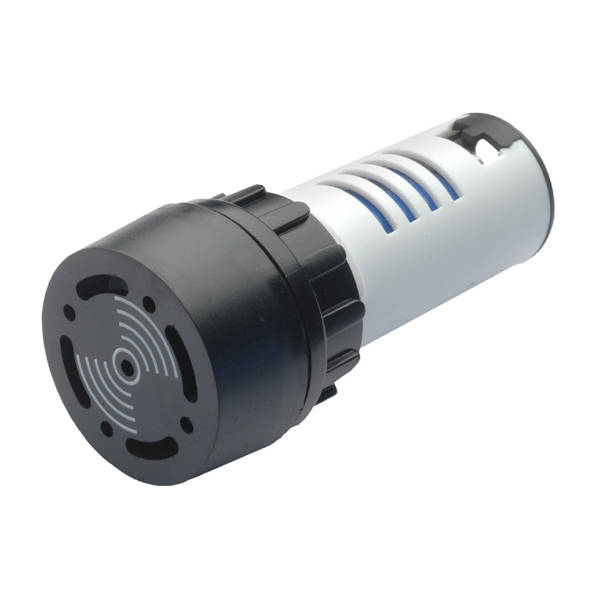

Pfannenberg P 22 DBZ Panel Mount Buzzer with pulsating tone. IP40.

Configure

$35.00
23310150000
(603)

PFANNENBERG  23310150000

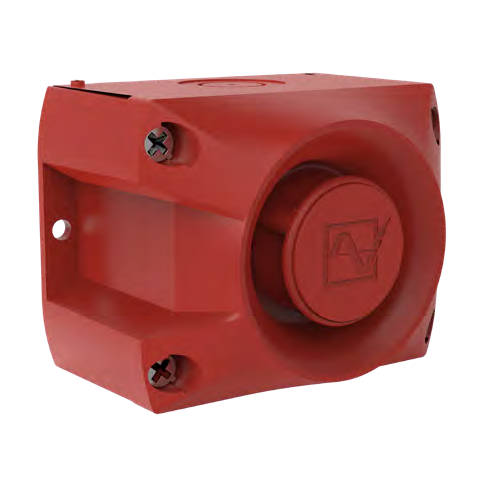

Pfannenberg Patrol PA 1 Sounder 105dB(A). 80 Tones and 4 stages. Impact proof housing. 3xM20 entries. IP66. EAC and Ul Approvals.

Configure

$140.00
23350150055
(604)

PFANNENBERG  23350150055

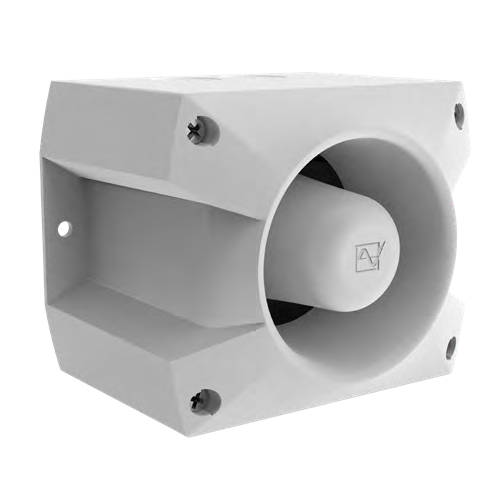

Pfannenberg Patrol PA 5 Sounder 107dB(A). 80 Tones and 4 stages. Impact proof housing. 5xM20 entries. IP66. EAC and Ul Approvals.

Configure

$205.00
23360640055
(605)

PFANNENBERG  23360640055

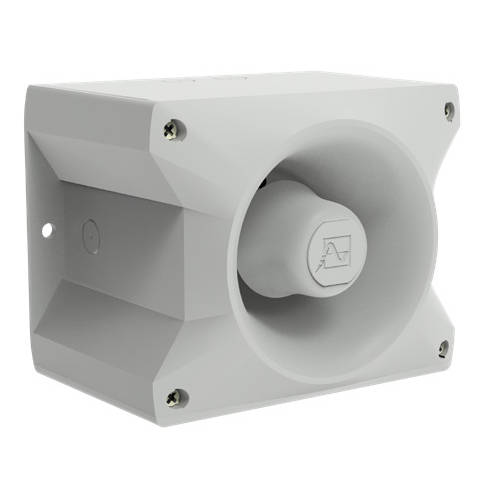

Pfannenberg Patrol PA 10 Sounder 117dB(A). 80 Tones and 4 stages. Impact proof housing. 5xM20 entries. IP66. EAC and Ul Approvals.

Configure

$350.00
23111800000
(608)

PFANNENBERG  23111800000

Pfannenberg DS 10 Alarm Sounder 114dB(A) for tough demands. 31 Tones and 4 stages. 2xM20 entries. IP66/IP67. EAC Approval. External Tone Selection Control as an option.

Configure

$360.00
23106800522
(607)

PFANNENBERG  23106800522

Pfannenberg DS 5 Alarm Sounder 108dB(A) for tough demands. 31 Tones and 4 stages. 2xM20 entries. IP66/IP67. EAC Approval. Volume and External Tone Selection Controls as an option.

Configure

$375.00
23106100007
(626)

PFANNENBERG  23106100007

Pfannenberg DS 5 3G/3D ATEX Alarm Sounder 108dB(A) for tough applications in Zones 2 & 22. 31 Tones and 4 stages. 2xM20 entries. IP66/IP67. ATEX and EAC Approvals.

Configure

$445.00
23370630000
(606)

PFANNENBERG  23370630000

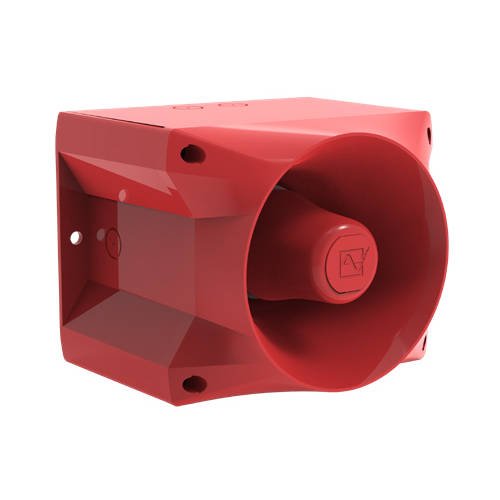

Pfannenberg Patrol PA 20 Sounder 122dB(A). 80 Tones and 4 stages. Impact proof housing. 5xM20 entries. IP66. EAC and Ul Approvals.

Configure

$520.00
32080800000
(625)

PFANNENBERG  32080800000

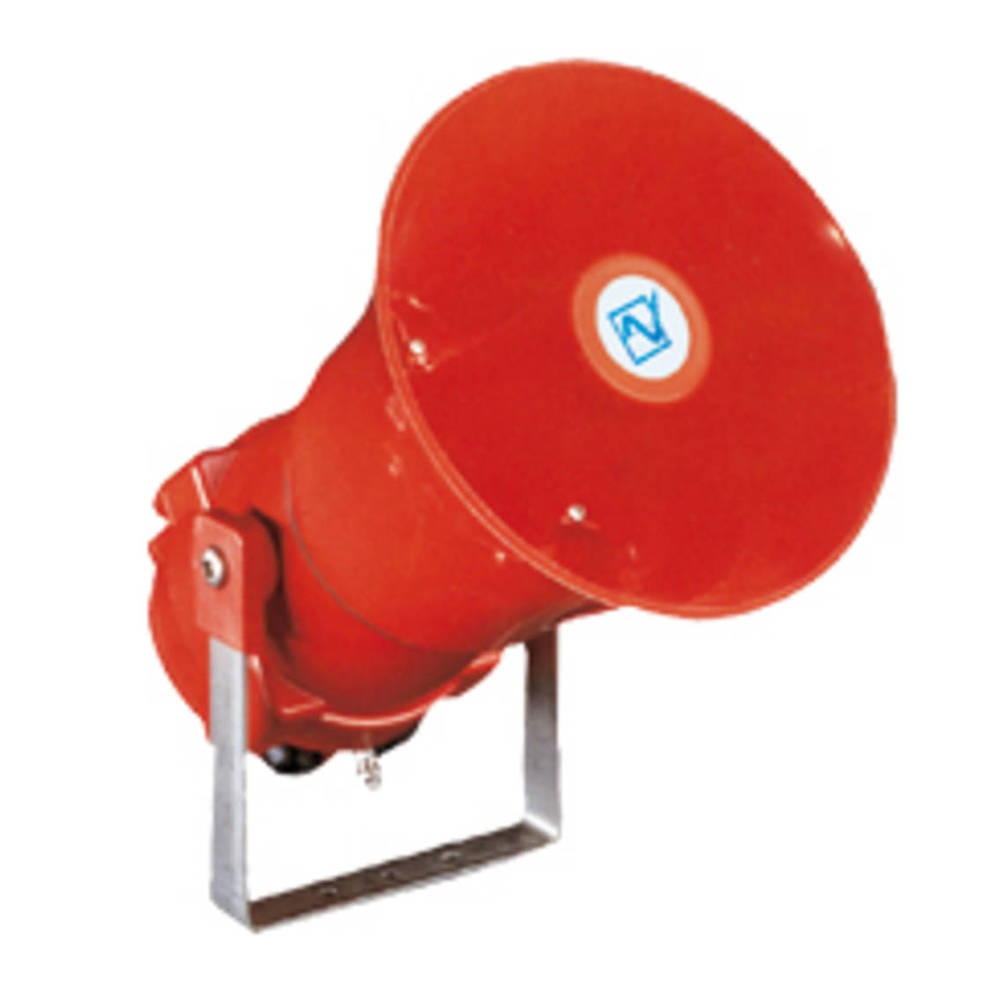

Pfannenberg BEx(D)S 110 d/e Sounder for Zones 1, 2, 21 & 22. 113dBA. 32 Tones. Die-cast aluminium housing. 2xM20 entries. IP66/67. ATEX and optionally IECEx Approvals.
