PFANNENBERG  31111103000

ALARM SIGNAL DEVICES / EXPLOSION PROOF
STROBE

$1,526.04     Availability: 4 Weeks
 Info/Quote Request
 Shipping Rates
 Volume discount



PFANNENBERG 31111103000 (1)
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

Pfannenberg BExBG15 Flashing Light for Zones 1, 2, 21 & 22. Ex d or Ex de versions. 15 Joule. 2xM20 entries. IP67. ATEX and EAC Approvals.

Part# with Options:        31111103000
Price with Options:        1,526.04

Options:

Version
(1) Version for Pfannenberg BExBG15
Lens Colour
(2) Lens Colour for Pfannenberg (AM,RD,YL)

  Availability 4 Weeks  ]

The flashing light is ideal for almost all mounting requirements: side, ceiling and floor mounting.

  • Categories 2G (Zones 1 and 2), 2D (Zones 21 and 22).
  • Extremely bright at up to 15 joules flash energy.
  • Large connection box for simple mounting.
  • Also available with connection box in increased safety version.
  • Very sturdy, manufactured from seawater-resistant aluminium and stainless steel protection cage.
  • BExBG05 can be mounted in all operating positions.

BExBG15
Operating range and Nominal current consumption 230 V 10 % (AC 50 | 60 Hz): 170 mA
115 V 10 % (AC 50 | 60 Hz): 360 mA
48 V 25 %: 480 mA
24 V 25 %: 860 mA
Type of protectionEx d IP 67 / Ex de IP 66
Explosion protectionII2G Ex d IIC T4 or T5
II2G Ex de IIC T4 or T5
II2D Ex tD A21 IP67
T95, T110 or T125
Category (area of use)2G (Zone 1, 2) | 2D (Zone 21, 22)
Certificate of conformityKEMA 01 ATEX 2030
Testing bodyKEMA
Flash energy15 J
Flash rate60 flashes/min, stabilised
Temperature class TT4 / T125C @ Ta 50 C ... +70 C
T110C @ Ta 50 C ... +55 C
T5 / T85C @ Ta 50 C ... +40 C
Storage temperature50 C ... +70 C
Relative humidity90 %
Duty cycle100 %
Service life of the light sourcelight emission still 70 % after 8,000,000 flashes
Material (lens)glass
Material (housing)die-cast aluminium, resistant to salt water, marine grade LM6, red (RAL 3000)
Material (protective cage and bracket)stainless steel
Type of connection1 x 4 mm 2 or 2 x 2.5 mm 2
Cable entry2 x M20, of which one open, optionally PG13.5 or 1/2" NPT
WeightExd: 2.45 kg
Exde: 2.75 kg
Export Info
Made inGermany
Harmonized Tariff Code (HTC)85311095



B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> STROBE :    11 Items found.
21510157055
(599)

PFANNENBERG  21510157055

Pfannenberg Pyra PY X-S-05 Compact Flashing Strobe Alarm Light. 5 Joule. 50 cd. Impact proof housing. 3xM20 entries. IP66. EAC and Ul Approvals.

Configure

$148.57
21551154055
(600)

PFANNENBERG  21551154055

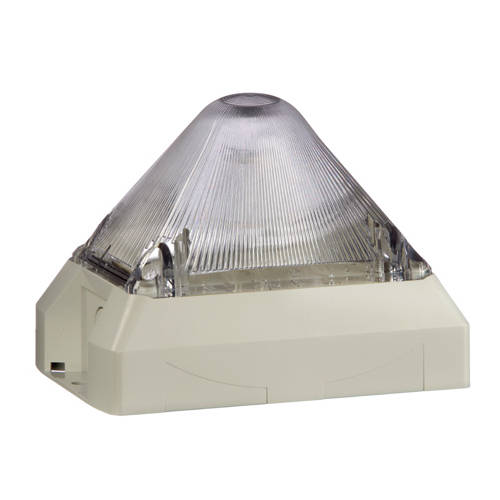

Pfannenberg Pyra PY X-M-10 Flashing Strobe Light with Xenon technology. 10 Joule. 149 cd. 4 flash rates. Impact proof housing. 4xM20 entries. IP66. EAC and Ul Approvals.

Configure

$196.32
21561804000
(601)

PFANNENBERG  21561804000

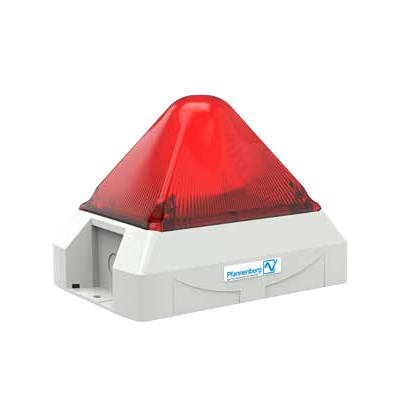

Pfannenberg Pyra PY X-L-15 Flashing Strobe Light with xenon flash tube. 15 Joule. 190 cd. Impact proof housing. 4xM20 entries. IP66. NEMA 4X. EAC and Ul Approvals.

Configure

$249.38
21151634006
(609)

PFANNENBERG  21151634006

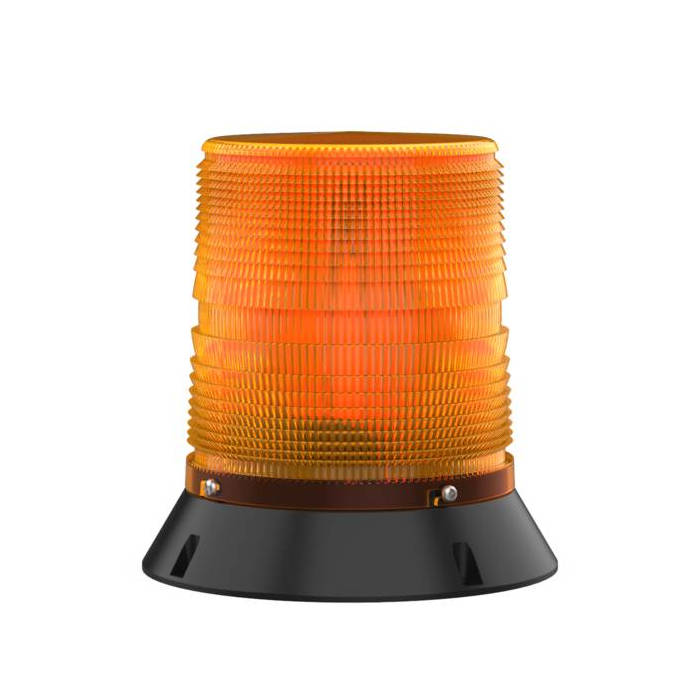

Pfannenberg PMF-LED Flex Multifunction Light with continuos, blinking or flashing light modes. 1xM20 entries. IP55. EAC Approval.

Configure

$387.34
21108631000
(602)

PFANNENBERG  21108631000

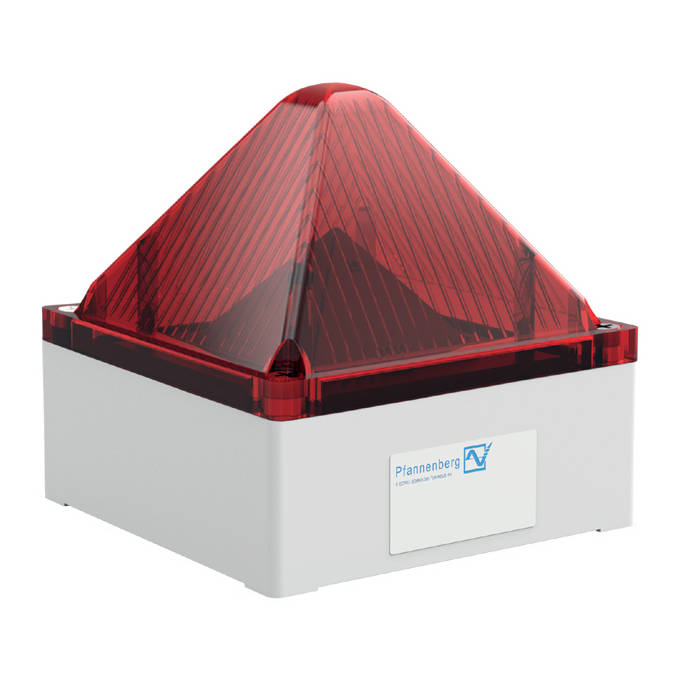

Pfannenberg Quadro-LED-HI Multifunction LED Light with continuos, blinking or flashing light modes. 75 cd. Impact proof housing. 4xM20 entries. IP66/67. EAC Approval.

Configure

$392.64
21104643009
(623)

PFANNENBERG  21104643009

Pfannenberg Quadro-LED Flex-3G/3D ATEX Flashing Light for explosive areas in Zones 2 & 22. Continuos, blinking, flashing or rotating alarm lights. Impact proof housing. 2xM20 entries. IP66. ATEX and EAC Approvals.

Configure

$586.54
21041801008
(622)

PFANNENBERG  21041801008

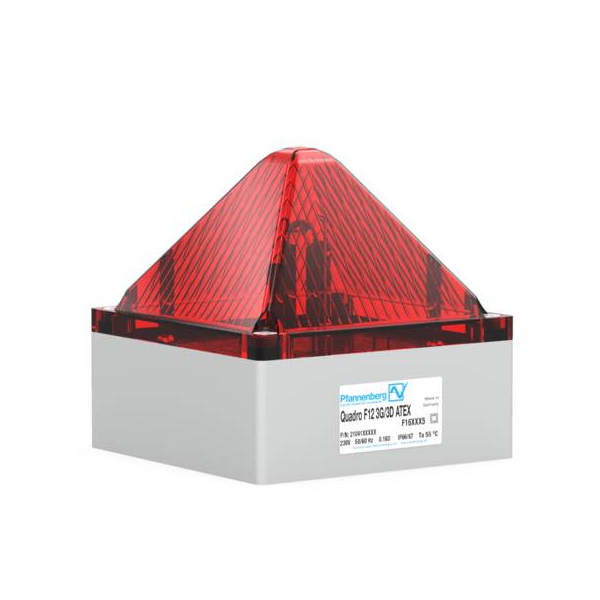

Pfannenberg Quadro F12-3G/3D ATEX Flashing Light for explosive areas in Zones 2 & 22. 7.5 Joule. Impact proof housing. 2xM20 entries. IP66. ATEX and EAC Approvals.
