PFANNENBERG  21108631000

ALARM SIGNAL DEVICES / WEATHERPROOF
STROBE

$370.00     Availability: 3 Days
 Info/Quote Request
 Shipping Rates
 Volume discount



PFANNENBERG 21108631000 (1)
  • Overview
  • Benefits
  • Specs
  • Literature

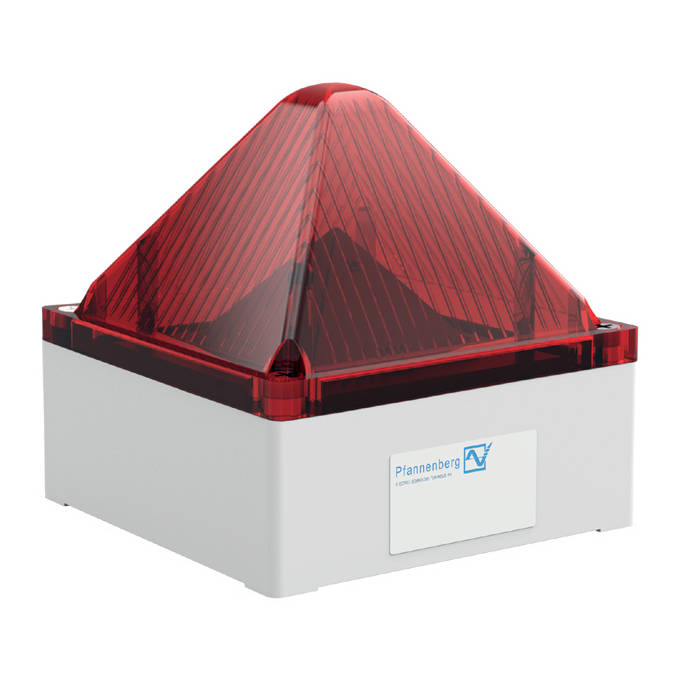

Pfannenberg Quadro-LED-HI Multifunction LED Light with continuos, blinking or flashing light modes. 75 cd. Impact proof housing. 4xM20 entries. IP66/67. EAC Approval.

Part# with Options:        21108631000
Price with Options:        370.00

Options:

Voltage
(1) Voltage for Pfannenberg Quadro-LED-HI
Lens Colour
(2) Lens Colour for Pfannenberg (CL,YL,AM,RD,GR)

  Availability [  3 Days  ]

Standard configurations typically available in 3 Days:
21108634000    21108644000    21108635000    21108645000    21108646000

Designed for tough requirements under industrial conditions.

  • Innovative LED light with high signaling effect.
  • Suitable for indoor and outdoor use.
  • Extremely insensitive to shock and vibration.
  • 3 selectable operating modes as standard:
    • Continuous light
    • Blinking light
    • Flashing light
  • 24 V AC/DC devices as standard with Soft Start Module.
  • Double-pole terminal.
  • Inexpensive and flexible; wide range power supplies as standard.

Quadro-LED-HI
Operating range and Nominal current consumption 115/230 V (AC 50 | 60 Hz / DC): 90–253 V / 45 mA @ 230 V AC
24 V DC: 11–60 V / 165 mA @ 24 V DC
Operating mode internally and externally selectable (DC) & Light alternation frequencycontinuous light
blinking light: 1 Hz / 2 Hz
flashing light: 0.1 Hz / 0.5 Hz / 0.75 Hz / 1 Hz / 2 Hz
Light source4 high output LED
Light intensity (DIN 5037)75 cd (reducible)
Max. viewing distance201 m
Operating temperature–40 °C ... +55 °C
Storage temperature–40 °C ... +70 °C
Relative humidity100%
Protection system (EN 60529)IP 66 | IP 67
Impact resistance (EN 50102)IK08
Protection classII
Service life of the light source≥50,000 hrs
Material (lens)polycarbonate (PC)
Material (housing)polycarbonate (PC), grey RAL 7035
Cable entry2x M20/M32 sideways, 2x M20 bottom side
Connecting terminalcage clamp 0.08–2.5 mm 2 (2 per Pol)
Weight (net)900 g
Export Info
Made inGermany
Harmonized Tariff Code (HTC)85311095


B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer, Check and Money Order

Checkout with Paypal

> WEATHERPROOF > STROBE :    11 Items found.
21510157055
(599)

PFANNENBERG  21510157055

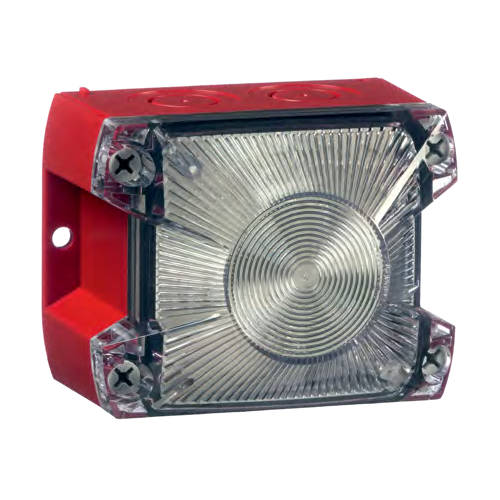

Pfannenberg Pyra PY X-S-05 Compact Flashing Strobe Alarm Light. 5 Joule. 50 cd. Impact proof housing. 3xM20 entries. IP66. EAC and Ul Approvals.

Configure

$140.00
21551154055
(600)

PFANNENBERG  21551154055

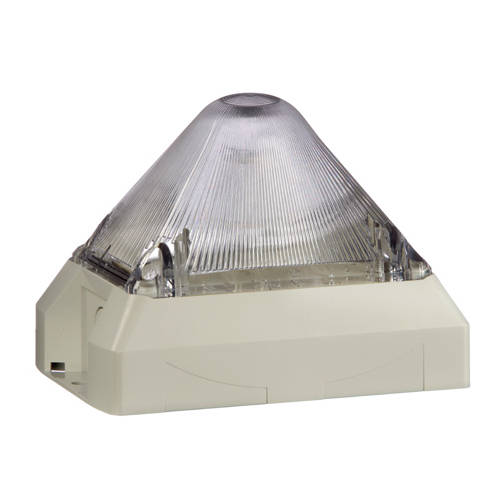

Pfannenberg Pyra PY X-M-10 Flashing Strobe Light with Xenon technology. 10 Joule. 149 cd. 4 flash rates. Impact proof housing. 4xM20 entries. IP66. EAC and Ul Approvals.

Configure

$185.00
21561804000
(601)

PFANNENBERG  21561804000

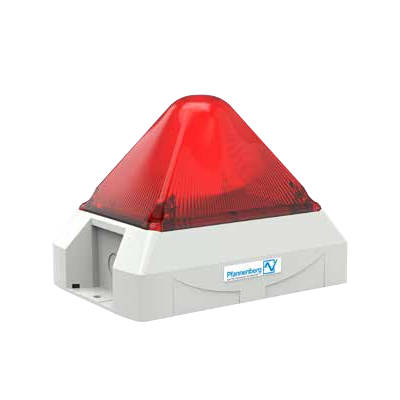

Pfannenberg Pyra PY X-L-15 Flashing Strobe Light with xenon flash tube. 15 Joule. 190 cd. Impact proof housing. 4xM20 entries. IP66. NEMA 4X. EAC and Ul Approvals.

Configure

$235.00
21151634006
(609)

PFANNENBERG  21151634006

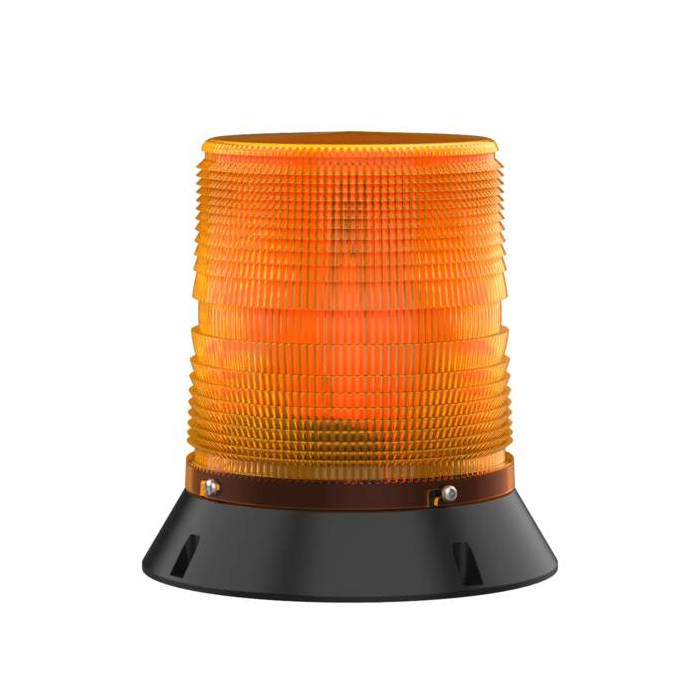

Pfannenberg PMF-LED Flex Multifunction Light with continuos, blinking or flashing light modes. 1xM20 entries. IP55. EAC Approval.

Configure

$365.00
21104643009
(623)

PFANNENBERG  21104643009

Pfannenberg Quadro-LED Flex-3G/3D ATEX Flashing Light for explosive areas in Zones 2 & 22. Continuos, blinking, flashing or rotating alarm lights. Impact proof housing. 2xM20 entries. IP66. ATEX and EAC Approvals.

Configure

$565.00
21041801008
(622)

PFANNENBERG  21041801008

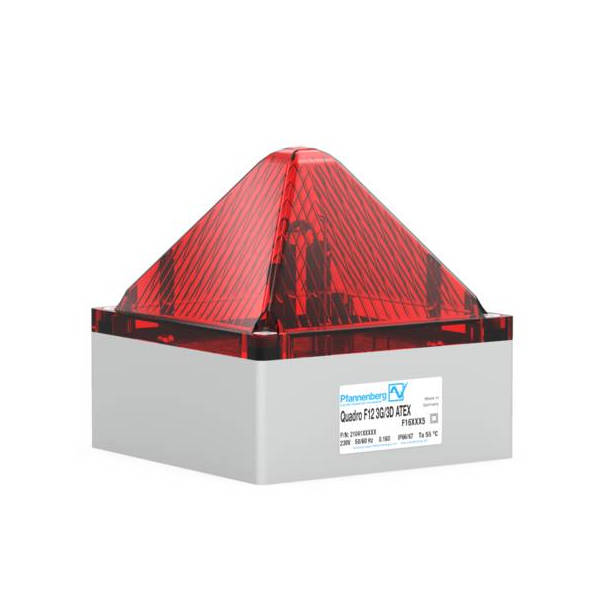

Pfannenberg Quadro F12-3G/3D ATEX Flashing Light for explosive areas in Zones 2 & 22. 7.5 Joule. Impact proof housing. 2xM20 entries. IP66. ATEX and EAC Approvals.

Configure

$565.00
31006133000
(621)

PFANNENBERG  31006133000

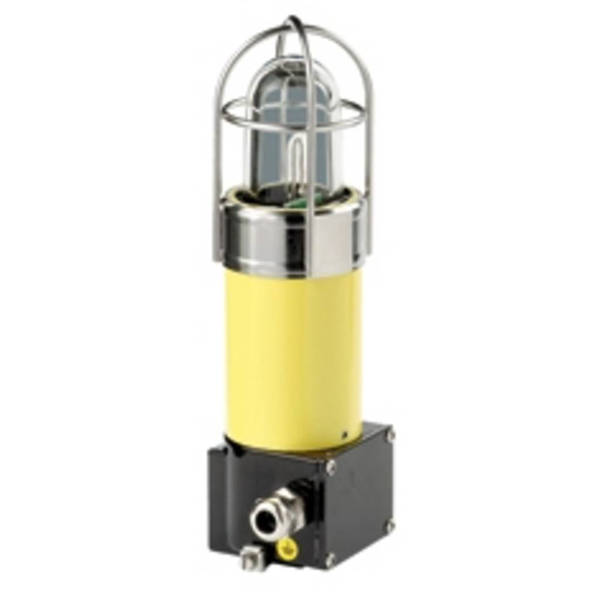

Pfannenberg CWB-ATEX Flashing Light for Zones 1, 2, 21 & 22. 5 Joule. Aluminium Housing. Ex de. 2xM20 entries. IP66. ATEX and EAC Approvals.

Configure

$800.00
31131103000
(617)

PFANNENBERG  31131103000

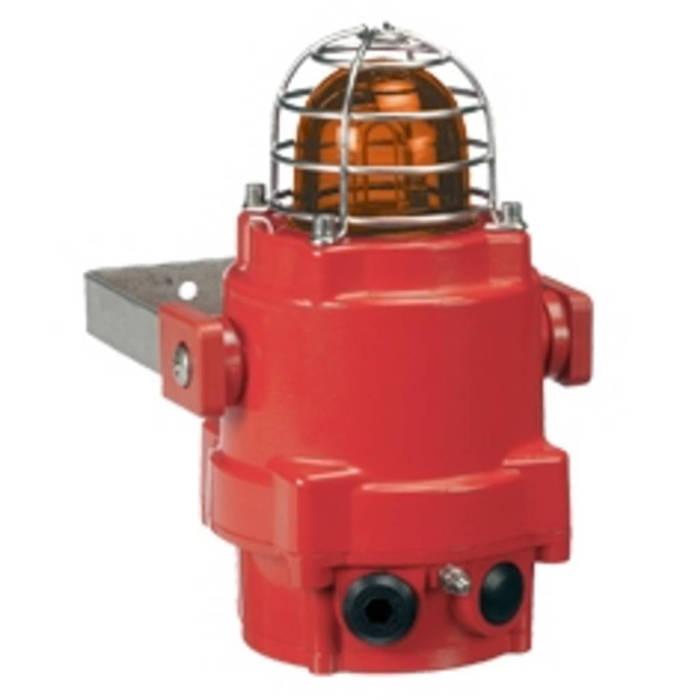

Pfannenberg BExBG05 Flashing Light for Zones 1, 2, 21 & 22. Ex d or Ex de versions. 5 Joule. 2xM20 entries. IP67. ATEX and EAC Approvals.

Configure

$1,250.00
31151104000
(620)

PFANNENBERG  31151104000

Pfannenberg BExBG L1D LED Light for Zones 1, 2, 21 & 22. Ex d. 2xM20 entries. 230 VAC. Amber Lens. IP67. ATEX and EAC Approvals.

Configure

$1,360.00
31121103000
(618)

PFANNENBERG  31121103000

Pfannenberg BExBG10 Flashing Light for Zones 1, 2, 21 & 22. Ex d or Ex de versions. 10 Joule. 2xM20 entries. IP67. ATEX and EAC Approvals.

Configure

$1,405.00
31111103000
(619)

PFANNENBERG  31111103000

Pfannenberg BExBG15 Flashing Light for Zones 1, 2, 21 & 22. Ex d or Ex de versions. 15 Joule. 2xM20 entries. IP67. ATEX and EAC Approvals.

Configure

$1,470.00
