KOBOLD   VKA-5102

SKU# (378)



KOBOLD VKA-5102

FLOW / METERS
WEATHERPROOF IP65

$451.20  [7 Days]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
KOBOLD VKA OEM Viscosity Compensated Flowmeter. 2 GPH to 26 GPM Oil Flow Ranges. ±5% Accuracy. Brass Construction. 3600 PSI Max. Pressure. 30 to 300 cSt media viscosity. IP54 or IP65. cCSAus Approved.

VKA-5102
451.20

Model
Flow Range
NPT Connection Fittings
SPDT Upgrade

  [  7 Days  ]

Features
  • Flow Ranges: 2...6.3 GPH to 8...26 GPM Oil
  • Media Viscosity: 30...300 cSt
  • Temperature Range: -13...212 °F
  • Max. Pressure: 3600 PSIG
  • All Brass Metal Bodies

Looking for a low cost viscosity compensated fl owmeter? Look no further than the KOBOLD VKA line of meters! The VKA fl owmeter combines proven and reliable construction with affordable pricing. Available for fl ow rates from 2 GPH to 26 GPM, the VKA is a viable alternative to the VKG and VKM series of fl ow metering products. Internal modifi cations reduce the pressure loss through the meter to 8 PSI, while still maintaining a compensated viscosity range of 30 to 300 cSt.

Specifications
Base Accuracy+/- 5% FS (Add +/- 5% Max. for Viscosity Changes)
Viscosity Range:30...300 cSt
Pressure Loss:8 PSI @ Max Flow
Fittings:NPT Standard
Wetted Parts:Ni-Plated Brass, 301 SS, PTFE, Ceramic, & NBR
Temperature Range:–13...212 °F
Maximum Pressure:3600 PSIG
Flow DirectionMeter Versions: Vertical Up or Horzontal (specify horizontal fl ow direction when ordering, L or R)
Switch Only: As Desired
Reed ContactStandard: N/O, Optional: SPDT
max. 230 VDC/0.26 A/60 W
60 VDC/1 A/60 W
max. 240 VAC/0.42 A/100 W
100 VAC/1 A/100 W
cCSAus Approved
Electrical ConnectionDIN 43 650 w/Cable Gland
Ingress Protection:IP54 / NEMA 3 (w/Side Indicator)
IP65 / NEMA 4 (Electrical Switch)

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> WEATHERPROOF IP65 :    13 Items found.
LSP-1100P
(309)

KOBOLD  LSP-1100P

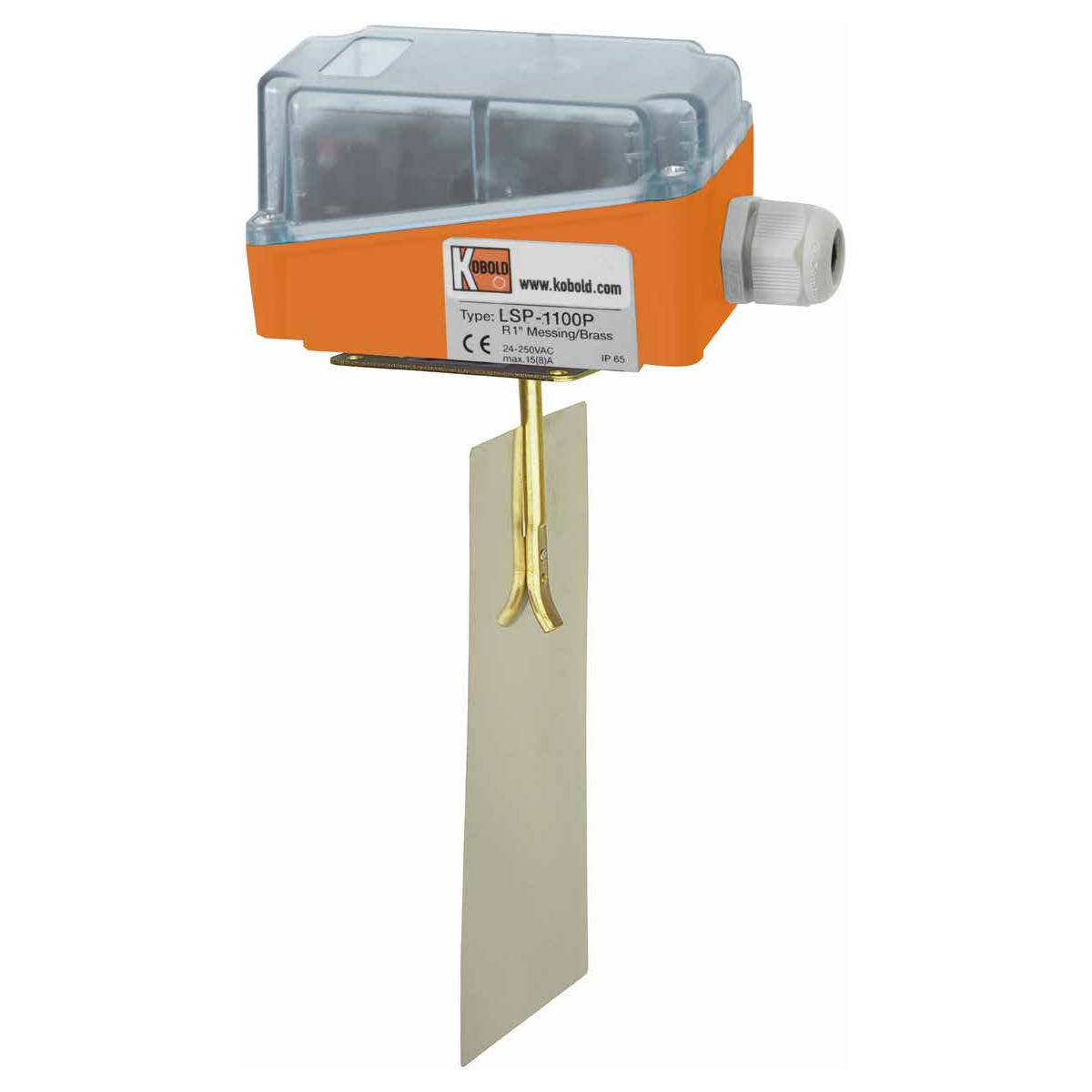

KOBOLD LSP Air Flow Switch for Ducts with adjustable switch point. Vertical or Horizontal Installation. Dust-proof SPDT switch. ABS, Fiberglass Housing. IP65.



$137.24
FPS-5100P
(310)

KOBOLD  FPS-5100P

KOBOLD FPS Paddle Bellows Flow Switch for Liquids with adjustable switch point. Universal Mounting Position. Brass or StainlessSteel. From 0.9 ot 4.4 GPM to 375 to 760 GPM water ranges. SPDT contact. IP65.

Configure

$159.80
SMF-5101
(400)

KOBOLD  SMF-5101

KOBOLD SMF High Pressure - All-Metal Flowmeter and Switch. Vertical, Flow Bottom to Top. Direct Reading Scales for Water or Air. 5% Accuracy, 3600/5000 PSI max pressure. Brass or Stainless Steel Versions. IP65.

Configure

$286.70
SMW-5101
(399)

KOBOLD  SMW-5101

KOBOLD SMW High Pressure - All-Metal Flowmeter and Switch. Horizontal, Flow Left to Right or Flow Right to Left. Direct Reading Scales for Water or Air. 5% Accuracy, 3600/5000 PSI max pressure. Brass or Stainless Steel Versions. IP65.

Configure

$286.70
SMV-5101
(398)

KOBOLD  SMV-5101

KOBOLD SMV High Pressure - All-Metal Flowmeter and Switch. Vertical, Flow Bottom to Top. Direct Reading Scales for Water or Air. 5% Accuracy, 3600/5000 PSI max pressure. Brass or Stainless Steel Versions. IP65.

Configure

$286.70
SMO-5101
(397)

KOBOLD  SMO-5101

KOBOLD SMO High Pressure - All-Metal Flowmeter and Switch. Vertical, Flow Top to Bottom. Direct Reading Scales for Water or Air. 5% Accuracy, 3600/5000 PSI max pressure. Brass or Stainless Steel Versions. IP65.

Configure

$286.70
DFT-3103N2
(297)

KOBOLD  DFT-3103N2

KOBOLD DFT Compact Paddle Flow Sensor for Water and Other LowViscosity Liquids. 0.05 to 0.50 to 0.8 to 15 GPM measuring range. PTFE or Brass Bodies. Pulse Output. Optional Analog Outputs, Digital Displays, Totalizer and Batch Controllers. IP65.

Configure

$368.48
KAL-D5408-N-ST3
(291)

KOBOLD  KAL-D5408-N-ST3

KOBOLD KAL-D Compact Thermal Flow Switch to monitor the flowrate of non-viscous water-based liquids. 24 VDC. 0.15 to 6.6 ft/seg switching range. 580 PSIG max pressure. 304SS Housing. IP65. Includes MicroDC 4 pin male plug.

Configure

$374.12
DUK-11N4GS300L
(637)

KOBOLD  DUK-11N4GS300L

Kobold DUK Compact Ultrasonic Flowmeter for measuring, monitoring, metering, and batching of low viscosity liquids. Brass housing. Switching, frequency or analog outputs available. Up to 230 PSI. IP65.

Configure

$850.70
DUK-21N4GS300L
(639)

KOBOLD  DUK-21N4GS300L

Kobold DUK Compact Ultrasonic Flowmeter for measuring, monitoring, metering, and batching of low viscosity liquids. High Temp Brass housing. Switching, frequency or analog outputs available. Up to 230 PSI. IP65.

Configure

$920.26
DUK-12N4GS300L
(638)

KOBOLD  DUK-12N4GS300L

Kobold DUK Compact Ultrasonic Flowmeter for measuring, monitoring, metering, and batching of low viscosity liquids. 316 Stainless Steel housing. Switching, frequency or analog outputs available. Up to 230 PSI. IP65.

Configure

$1,048.10
DUK-22N4GS300L
(640)

KOBOLD  DUK-22N4GS300L

Kobold DUK Compact Ultrasonic Flowmeter for measuring, monitoring, metering, and batching of low viscosity liquids. High Temp 316 Stainless Steel housing. Switching, frequency or analog outputs available. Up to 230 PSI. IP65.

Configure

$1,115.78
DUC-MF100D00
(635)

KOBOLD  DUC-MF100D00

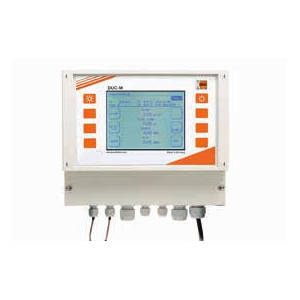

Kobold DUC-MF Stationary Ultrasonic Flowmeter for Conducting Liquids. Electronic flow transmitter. ABS Housing. 2 4-20 mA, 1 Pulse with 1 Channel, 2 Pulse with 2 Channel, 1 Micro USB and 1 Relay Outputs. Optional RS232 / RS485. 2 Pt 100 Inputs. IP65.

Configure

$3,917.92
