Name: INTEC SF1K-US SWITCHES NEMA-4 (IP65)
Brand: INTEC
SKU: 343
Price: 132.90 USD
Availability: PreOrder

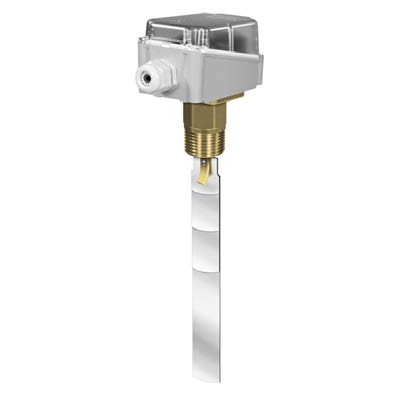

INTEC SF1K-US

DESCRIPTION
FEATURES
SPECIFICATIONS
LITERATURE

Intec SF liquid flow Switch for use in 1 to 8 inch pipe. 24 to 250 VAC. Includes Stainless Steel DBZ-09 paddles, 1" NPT pipe fitting and 1/2" conduit connection. NEMA 4 Housing. 1 SPDT output. IP65.

SF1K-US
$132.90

[ 2 Weeks ]

FUNCTION

Alarm signal of flow shortage. Made in brass, suitable for normal media.

APPLICATIONS

Well-suited in pipes of general industrial plants:

heating and air conditioning systems
refrigeration systems
heat pumps

TECHNICAL DATA
Contacts:	Dust-tight microswitch with SPDT contacts (NC/NO)
Switch capacity:	15 (8) A, 24...250 VAC
Working:	-4�F to 149�F (-20�C to 65�C) 10...90% RH (non-condensing)
Max liquid temperature:	-40�F to 248�F (-40�C to 120�C)
Max pressure:	159.5 PSI (11 bar)
Flow rate:	See Flow Rate Table
Pipe fitting:	1" NPT
Conduit connection:	1/2" NPT
Body:	Brass
Paddles:	Stainless steel AISI 316L
Housing:	Base in ABS, transparent PC cover
Storage:	-40�F to 185�F (-40�C to 85�C) < 95% RH
Protection:	IP65, Class I
Size:	5.51 x 2.44 x 2.56 in (140 x 62 x 65 mm)
Weight:	2.1 lbs (0.95 kg)

Intec SF Datasheet
