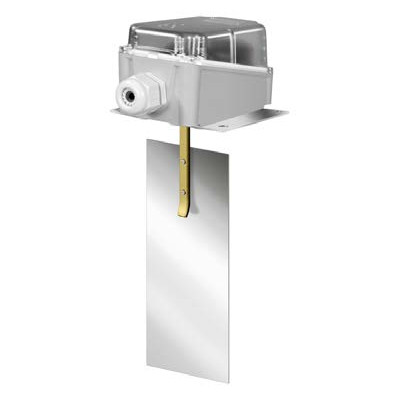

INTEC   SL1E-US

SL1E-US
$105.92

Air or non-aggressive gas flow control. Alarm signal for flow shortage.

Well-suited in air ducts, air conditioning and air handling systems.

Connect to red and to white terminals (fig. 1). The contact red- white opens when the flow drops below the set level. When the flow is missing the contact red-blue closes and can be used as a signal or alarm contact.

The flow switch may be installed in any position, as long as it is following the stream. On vertical pipes, balance the device for compensating the weight of the vane. Fit the provided gasket between device and pipe.

Note: The flow switch is factory calibrated to the minimum switch- off value. A higher value can be selected by turning the adjustment screw to the right. Due to the risk of fracture at higher air speed than 5 m/s, the vane must be cut off on the side where marked. As a result of this, however, the factory-set minimum switch-off value will increase from 1 m/s to 2.5 m/s. In order to avoid air turbulences that diminish stability of the vane, steadying zones should be provided for a length of 5 times the diameter before and after the location of installation.
