KOBOLD   PS-5114

KOBOLD PS-5114
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
KOBOLD PS Paddle Type Flow Switch with adjustable switch point. Brass or SS construction. 1450 PSIG max pressure. Polyamid, glass reinforced, NEMA 4 Housing. SPST contact.

PS-5114
Please Email us your request for quote

Material
Flow Range
SPDT Contact

   3 Days  ]

Features
  • Switch Point Adjustable
  • Easy to Install
  • Brass or SS Construction
  • Low Cost
  • Maximum Pressure: 1450 PSIG (most models)

KOBOLD paddle type flow switches can be used wherever a simple economic yet reliable monitoring instrument is required for flow switching applications.

The device operates as follows: The flowing medium presses against the paddle of the KOBOLD flow switch. The paddle is fitted to one end of a balance arm which is in direct contact with a pre-stressed leaf spring. At the other end of the balance arm is a permanent magnet. This magnet actuates a reed contact located within a moveable housing outside the media.

The reed contact switches on or off depending on the position of the permanent magnet and the switch housing. The status of the switch may then be used to electrically control the fluid flow. The movable reed switch on the Kobold PSR/PS allows the contacts to be set either normally open (N/O) or normally closed (N/C).

Specifications
Max. Temperature:230 ̊F
Max. Pressure:1450 PSIG (NOTE: 360 PSIG max for PSR-5132 & PSR-5140)
Paddle Material:SS 304
Leaf Spring Material:SS 301
Beam Material:SS 301
Locking Plate Material:brass or SS 304
Contact Housing Material:Polyamid, glass reinforced, NEMA 4
Cable Material:PVC
O-Ring Material:NBR for brass units; FKM for SS units
Contact:Reed-switch SPST, N/O or N/C (SPDT Optional)
Maximum Contact Ratings:50 VA, (50 Watt, 250 VAC, 1.5A)
Standard Cable Length:5ft
Orientation:Horizontal Pipes
Max Flow:5x switching range increasing

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> WEATHERPROOF NEMA-4 :    2 Items found.
PSR-5105
(307)

KOBOLD  PSR-5105

KOBOLD PSR Paddle Type Flow Switch with adjustable switch point. Brass or SS construction. 1450 PSIG max pressure. Polyamid, glass reinforced, NEMA 4 Housing. SPST contact.

DF-0201
(313)

KOBOLD  DF-0201

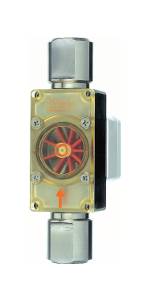

KOBOLD DF Paddle Wheel Flow Sensor (with multipole magnet ring embedded) for Water and Low Viscosity Liquids. Brass, Stainless, Trogamid, Polysulfone or Polypropylene Bodies. Robust and Reliable. ± 2.5% of full scale accuracy. NEMA 4.
