SKU#(304) Be the First to Review this Item



$574.00     Availability: 7 Days
 Info/Quote Request
 Shipping Rates
 Volume discount

  • Overview
  • Benefits
  • Specs
  • Documents

KOBOLD VKM Viscosity Compensated Flow Meter for Viscous Liquids, Float with orifice, spring-loaded. GPM Scale (oil). ±5% Accuracy. Brass or Stainless Steel. 3600/5000 PSI Max. Pressure. NEMA 4X. IP65.

Part# with Options:        VKM-6102
Price with Options:        574.00


(1) Material for KOBOL VKM-6
Oil Range
(2) Oil Range for KOBOLD VKM-6 (GPM)
Larger Fittings
(3) Larger Fittings for KOBOLD
SPDT Contact
(4) SPDT Contact for KOBOLD SV / VKG / VKM
NPT Fitting
(5) NPT Fitting for KOBOLD VKG / VKM
Contact N/O
(6) Contact N/O for KOBOLD VKG / VKM
For VKG-9000 Series Only

Availability 7 Days  ]

  • ±5% Full Scale Accuracy
  • Viscosity Compensation up to Δv=540 cSt
  • Density Compensation up to Δp=30 lb/ft3
  • Universal Mounting
  • Direct Reading Scales for Oil
  • Max. Pressure 3600 PSI Brass 5000 PSI Stainless Steel
  • Housing Materials in Brass or Stainless Steel
  • 4...20 mA Output and/or Digital Display Options

KOBOLD VKM flowmeters and switches are unique offerings for high viscosity media. Using KOBOLD’s patented viscosity compensation system, the VKM is insensitive to viscosity and density changes during operation. This patented and exceptional technology offers an extremely versatile instrument ready for almost any application imaginable.

Accuracy±5% Full Scale
Flow Mediae.g. clean mineral oil, water and other compatible liquids
MountingUniversal, without Recalibration
Measuring PrincipleFloat with orifi ce, spring-loaded
Max. Temperature212 °F
Max. Pressure3600 PSIG for Brass units
5000 PSIG for SS units
Viscosity-CompensatedUp to Δv=540 cSt with same scale, ±5% additional variation
Density-CompensatedUp to Δp=30 lb/ft3 with same scale, ±5% additional variation
HousingNickel-plated Brass or SS 304
FittingsNickel-plated Brass or SS 304
FloatBrass or SS 304
OrificeSS 301
SpringSS 301
SealsNBR (Brass units), FKM (SS units)
Electr. Switch HousingPlastic
Magnetic Pointer IndicatorNickel-plated Brass, Polycarbonate
Electrical ProtectionNEMA 4X, (IP54 for Side Indicator) (IP65 for Electrical Contact)
N/O Reed ContactAC: 1.5 A, 240 VAC,, 50 VA
DC: 1.0 A, 200 VDC, 50 W
SPDT Reed ContactAC: 0.8 A, 240 VAC, 30 VA
Compact Electronic Option C34P**
Power Requirement24VDC ±20%
Display3 digit LED
Output4-20 mA, 3-wire, RLoop<500 ohms
SwitchPNP, 300 mA Max.
Electrical ConnectionM-12 Micro-DC plug, 4-Pin
Electrical ProtectionNEMA 4X/IP65
**Note: Max fl ow range indicated is reduced by 10% for all ranges when using model VKM-0xxx series or the optional ..C34P electronic.

B2B Checkout Options: PO#, Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer, Check and Money Order

Checkout with Paypal

> METERS > WEATHERPROOF NEMA-4X IP65 :    4 Items found.
KSK-1015-G_-K10-00 (298) KOBOLD  KSK-1015-G-K10-00

KOBOLD KSK Plastic Flowmeter for Liquids and Gases. Operates on the basis of the variable-area principle. Trogamid-T or Polysulfone tubes. ±4% Accuracy. Shock and Corrosion Proof. 145 PSIG Max Pressure. Compact Design. NEMA 4X. IP65.

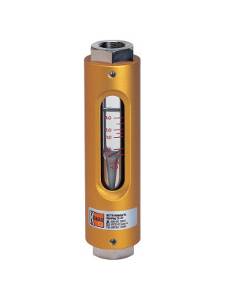

SV-5101 (300) KOBOLD  SV-5101

KOBOLD SV Float Type Flowmeter and Flow Switch. With cylindrical control tube and conical groove. GPM (water) or SCFM (air) calibrated. ±5% Accuracy. Lightweight and Compact Design. Nickel-Plated Brass or Stainless Steel Process Connections. 145 PSI Max. Pressure. NEMA 4X. IP65. cCSAus Approved.

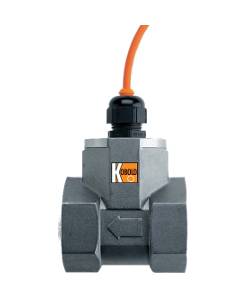

DPE-1150N4 (311) KOBOLD  DPE-1150N4

KOBOLD DPE Turbine Wheel Flow Meter for measurement of liquid flows in pipes up to 3 inches in diameter. 1.5-8 GPM to 15-200 GPM flow ranges. Bronze or stainless steel bodies. Frequency or 4-20 mA output. 580 PSIG max. pressure. SPDT 5 amps relays. NEMA 4X

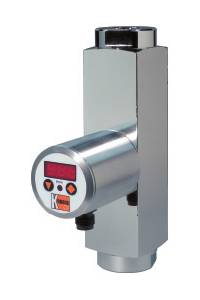

VKM-6102-C34P (305) KOBOLD  VKM-6102-C34P

KOBOLD VKM Viscosity Compensated Flow Meter for Viscous Liquids, Float with orifice, spring-loaded, with Compact Electronic Display. ±5% Accuracy. Brass or Stainless Steel. 3600/5000 PSI Max. Pressure. NEMA 4X. IP65.
