Process Control Instrumentation, Field Devices and Industrial Automation
SKU# (381)

KOBOLD  RCM-9101

$833.00     Availability: 2 Weeks
 Info/Quote Request
 Shipping Rates
 Volume discount




KOBOLD RCM-9101
  • Overview
  • Benefits
  • Specs
  • Related
  • Documents

KOBOLD RCM-9 Direct Reading Threaded Flowmeter for Gases. Compact Design and Easy to Install. 1.5 to 150 SCFM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options.

Part# with Options:        RCM-9101
Price with Options:        833.00

Options:

Material
(1) Material for KOBOLD RCM (Threaded Gases)
Flow Range / Fittings
(2) Flow Range / Fittings for KOBOLD RCM-9 (1.5 - 150)
Options
(3) Options for KOBOLD RCM
Seals
(4) Seals for KOBOLD RCM
Flow Configurations
(5) Flow Configurations for KOBOLD RCM
Remote Mounting Kit
(6) Remote Mounting Kit for KOBOLD RCM
Extended Flange Size
(7) Extended Flange Size for KOBOLD RCM
Aluminum Case
(8) Aluminum Case for KOBOLD RCM
Other Options
(9) Other Options for KOBOLD RCM

Availability 2 Weeks  ]

Features
  • Compact Design
  • Easy to Install
  • Horizontal or Vertical Installation
  • Flow Rates up to 3000 GPM (Liquid) or 20000 SCFM (Gas)
  • Low Pressure Drop
  • Optional Alarms and Output Signals

KOBOLD model RCM is a differential pressure direct reading flowmeter, suitable for liquids or gases with low to medium viscosity, low solid content, and compatible with all materials of construction. The RCM is ideal for industrial applications where durability and reliability are important considerations. It is compact, accurate, economical, needs minimal maintenance, and is resistant to damage. In liquid applications of 6 GPM and higher, pulsations snubbers are incorporated into the connecting pressure passages to produce smooth operation in the presence of turbulence.

Technical Details
Accuracy± 3% of full scale
Rangeability:6:1
Flow Media:Liquids or gases
Media Temp. Range:-30...212 °F (Standard, and with Electrical Options)
-80...350 °F (High Temp. Options with Order Suffix "T" or "K" Only)
Ambient Temp. Range:-30...120 °F
Maximum Pressure:180 PSIG (standard)
400 PSIG (optional)
Housing Materials: UV stabilized ABS Standard
Option F or F2: Aluminum
Option RW3: Fiberglass Reinforced
Polyamide
Body Materials:Bronze, Monel®, or 316 SS
Option ES; PTFE also wetted
Bellow Materials: Bronze, Monel®, 316 SS, or Inconel®
Seal Materials:NBR, FKM, EPDM, PTFE
Bellows Cap Material:PPS for low pressure units
Same as body material for high pressure and/or high temperature versions
Lens Material:Polycarbonate, Option F2: Safety Glass
Relay Options:High/Low Alarms
Output Options:4-20 mA, 0-1000 Hz frequency
Output Details
Electrical Rating:General purpose
Power Requirements:24 VDC ± 10%, 50 mA max.
Accuracy with Outputs:± 3% of full scale for horizontal flow
± 5% of full scale for vertical flow
Option - ..W (Analog Output):Output: 4-20 mA, 4-wire, proportional to flow
Load: 800 Ohms max.
Zero: 15% of full scale
Span: 30-100% of full scale flow
Option - ..W2/W3 (Analog Output):Output: 4-20 mA, proportional to diff. pressure
Load: 250 Ohms max.
Span: 15-100% of full scale orifice ΔP
Option - ..X (Alarm Relays):Output: 2 N/O limit relays
AC Contact Rating: 3.0 A @ 24 VAC, 1.0 A @ 117 VAC, 0.5 A @ 230 VAC
DC Contact Rating: 2.0 A @ 30 VDC, 0.6 A @ 110 VDC, 0.5 A @ 140 VDC
Option - ..Y (Frequency Output):Output: Frequency signal, 0-1000 Hz, 5 V Peak
Zero: 15% of full scale
Span: 30-100% of full scale flow
Option - ..RW3 (Digital Rate/Total Display)Display: Dual line 7 and 11 digit backlit LCD rate and total
Output: 4-20 mA, 2-wire, proportional to ΔP Pulse, NPN, 500Hz @ max flow
Protection: IP67/NEMA 4X

  • METERS > GENERAL PURPOSE
    RCM-6102 KOBOLD RCM-6 Direct Reading Wafer Style Flowmeter for Gases. Compact Design and Easy to Install. 1.5 to 800 SCFM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options. ..

  • METERS > GENERAL PURPOSE
    RCM-6129 KOBOLD RCM-6 Direct Reading Wafer Style Flowmeter for Gases. Compact Design and Easy to Install. 150 to 20000 SCFM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options. ..

  • METERS > GENERAL PURPOSE
    RCM-9117 KOBOLD RCM-9 Direct Reading Threaded Flowmeter for Gases. Compact Design and Easy to Install. 30 to 4000 SCFM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options. ..


B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer, Check and Money Order

Checkout with Paypal

> METERS > GENERAL PURPOSE :    14 Items found.
REG-5100
(390)

KOBOLD  REG-5100

KOBOLD REG Automatic Flow Regulating Valve for Liquids. Brass or SS Construction Available. Compact Design and Universal Mountability. 2900 PSIG max pressure. 0.13 to 10.56 Flow Rates.

Configure

$76.50

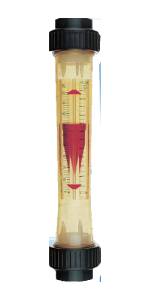

KSM-3001
(299)

KOBOLD  KSM-3001

KOBOLD KSM Plastic Flowmeter and Switch for Liquids and Gases. Excellent for aggressive media applications. Trogamid-T or Polysulfone tubes. ±4% Accuracy. Shock and Corrosion Proof. 145 PSIG Max Pressure.

Configure

$186.00
DAA-5108
(295)

KOBOLD  DAA-5108

KOBOLD DAA Flow Indicator with Self Cleaning Mechanism for liquids. Transparent Glass Cylinder. 232 PSIG max pressure. Universal Mounting.

Configure

$193.00

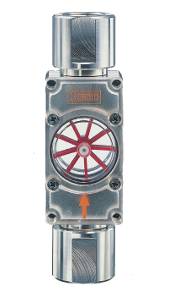

DAF-5101
(296)

KOBOLD  DAF-5101

KOBOLD DAF Paddle Wheel Flow Indicator for liquids. Rotatable. Universal Mounting.

Configure

$212.00
EDM-8501N
(314)

KOBOLD  EDM-8501N

KOBOLD EDM-8000 Battery Powered Rate Meter and Totalizer for Water. Compact and Portable. 1 to 10 to 60 to 6000 GPM flow rates. Lithium battery-powered LCD display. PVC Construction.

Configure

$392.00
OVZ-021N2-N-I401
(316)

KOBOLD  OVZ-021N2-N-I401

KOBOLD OVZ Economical Oval-Gear Flow Meter For Viscous Oils. Available with Hall-effect or inductive sensors. ±2.5% Accuracy. 10 to 800 cSt viscosity range. Five Material Combinations. Optional Analog Output, Frequency Output or Digital Indicating Output.

Configure

$692.00
RCM-5102
(383)

KOBOLD  RCM-5102

KOBOLD RCM-5 Direct Reading Wafer Style Flowmeter for Liquids. Compact Design and Easy to Install. 0.3 to 60 GPM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options.

Configure

$703.00
RCM-7101
(379)

KOBOLD  RCM-7101

KOBOLD RCM-7 Direct Reading Threaded Flowmeter for Liquids. Compact Design and Easy to Install. 0.3 to 15 GPM Flow Rates. ±3% Accuracy. 180 PSI Max. Pressure. Bronze, Monel or 316 SS Body Material Options.

Configure

$703.00

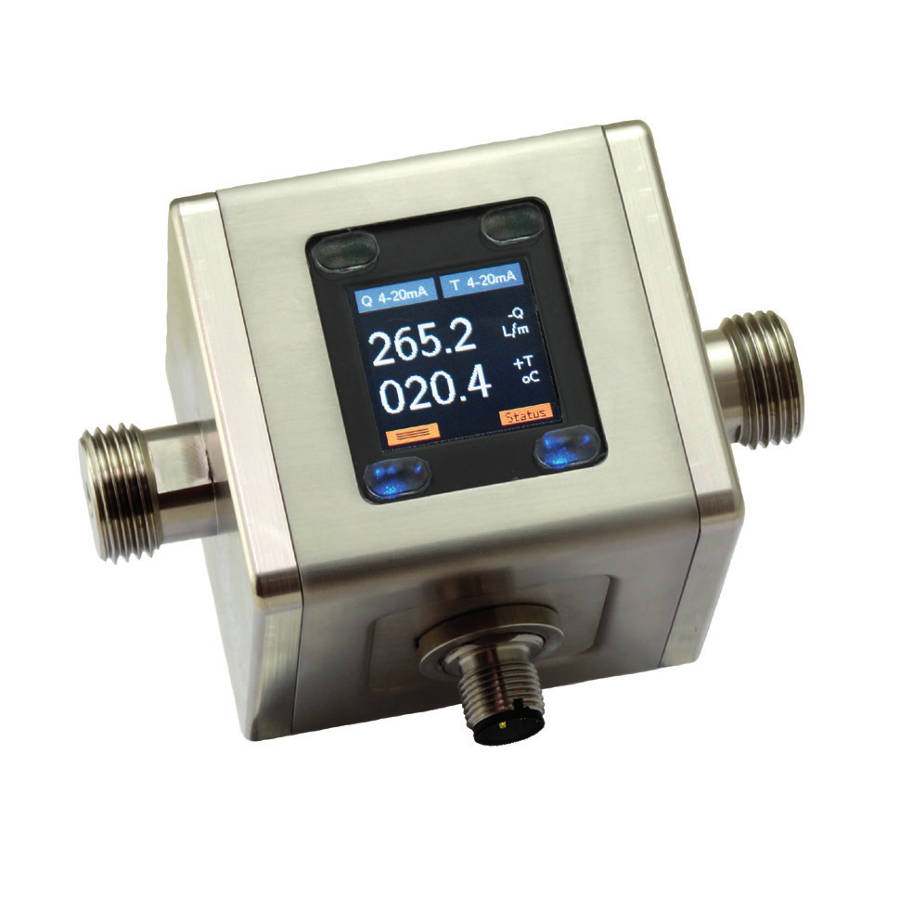

MIM-1205GG4C3T0
