SKU#(341) Be the First to Review this Item

INTEC  DBL-205

PRESSURE / SWITCHES
OUTDOOR NEMA-3 IP54

$30.51     Availability: 7 Days
 Information Request
 Shipping Rates
 Volume discount




INTEC DBL-205
  • Overview
  • Benefits
  • Specs
  • Documents

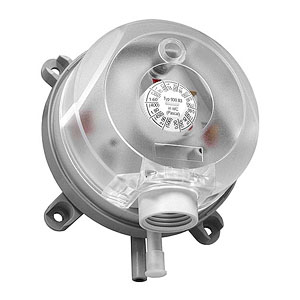

Intec DBL Vacuum, pressure, and differential pressure Switch for Air and non-combustible, non-aggressive gases. Compact and easy to install. High accuracy. 1 SPDT output. 1/2" NPT conduit connection. PA 6.6 Housing. NEMA 3. IP54.

Part# with Options:        DBL-205
Price with Options:        30.51

Options:

Range
(1) Range for Intec DBL Inch WC (Pa)
UL Version
(2) UL Version for Intec DBL
Duct Mount Kits
(3) Duct Mount Kits for Intec 948 & DBL

  Availability 7 Days  ]

DESCRIPTION

Adjustable vacuum, pressure, and differential pressure switches for air and other non-combustible, non-aggressive gases.

APPLICATIONs

Air pressure control and monitoring of ducts, filters, fans and other devices in ventilation and air conditioning systems.

FEATURES
  • Setpoint can be adjusted without field gauge reading
  • Compact & easy to install
  • High accuracy & life cycles
  • Adjustable switching differential
  • Calibrated, scaled setpoint knob

DBL SPECIFICATIONS
Type of operationOn/Off, single-stage, micro switch
Output1 SPDT, 250 VAC, 1.0 (0.4) A
Trip/setpointInternal linearly scaled knob
Switching differential Screw adjustable
Sensing techniques 2 pressure chambers separated by diaphragm
Diaphragm materialSilicone
Life cycles1,000,000
Permissible ambient temperatureWorking/storage: -4F to 185F (-20C to 85C)
Wire connectionSpade
Wire SizeMaximum 16 AWG (1.5 mm2)
Cable entry1/2" NPT conduit connection
Housing materialBase = PA 6.6, Cover = Polystyrene
Housing colorTransparent
Housing protectionNEMA 3 (IP54)
Housing dimensions (diameter)4.0 x 2.3 in. (100 x 58 mm)
InstallationSurface mounted
Pressure port connection2 for PVC tube, P1 (+) and P2 (-)
Diameter0.236" (6 mm) for O.D.
3/16" (8 mm) push-on tubing
Ship weight0.4 lb (0.2 kg)
